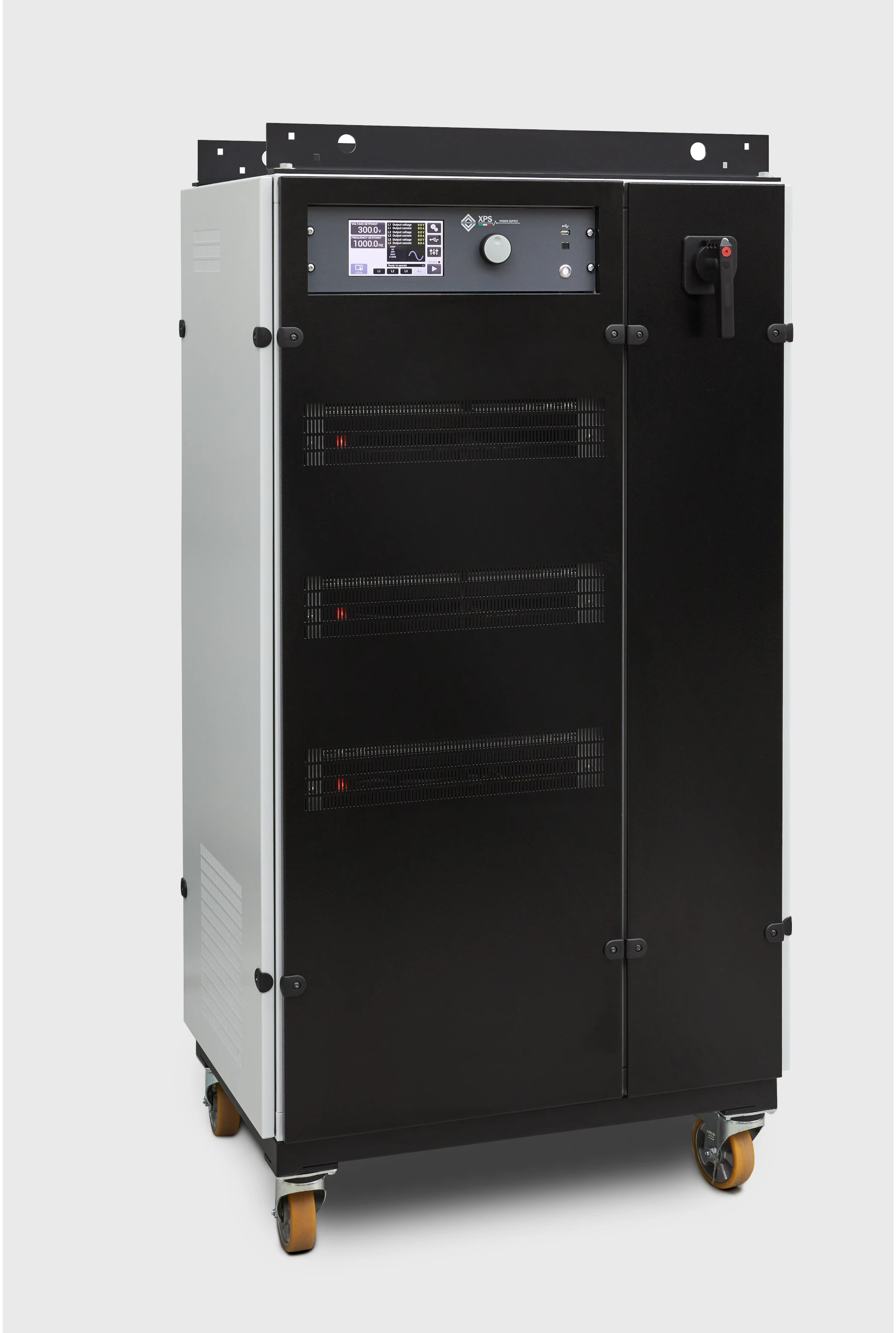

Three-phase XPS

Home / Prodotti / Three-phase XPS

Series of Programmable Power Source (named XPS series) able to provide DC voltage and AC voltage from 10Hz to 1kHz with high characteristic of purity , stability and accuracy.

Data sheet


		Code	99114513	99114613	99114813
		Name	XPS/T 18KVA	XPS/T 30KVA	XPS/T 67KVA
		Power Continous mode	–	–	–
		Power Inrush mode	18 KVA/36 KVA	30 KVA/60 KVA	67 KVA / 90 KVA
		Output	1phase⁽⁷⁾ / 3phase	1phase⁽⁷⁾ / 3phase	1phase⁽⁷⁾ / 3phase
		Characteristic	Isolated	Isolated	Isolated
	VOLTAGE	Range	300Vac/425Vdc	300Vac/425Vdc	300Vac/425Vdc
		Accuracy	<0.5% f.s.	<0.5% f.s.	<0.5% f.s.
		Distortion	<0.3%	<0.3%	<0.3%
		Stability of the output voltage	<0.1% f.s.	<0.1% f.s.	<0.1% f.s.
		Recovery time of the waveform	<50μs	<50μs	<50μs
		Maximum Compensated drop	5% s.v.	5% s.v.	5% s.v.
		Recovery-time of drop on wires	<200ms	<200ms	<200ms
		Output voltage resolution	AC 0.1% f.s. DC 0.05% f.s	AC 0.1% f.s. DC 0.05% f.s	AC 0.1% f.s. DC 0.05% f.s
INRUSH FUNCTION (MAX CURRENT)	1PH	RMS continuous ⁽²⁾ 150V	–	–	–
		RMS continuous ⁽²⁾ 300V	60A	96A	225A
		Inrush Current (3 seconds)⁽²⁾ 150V	–	–	–
		Inrush Current (3 seconds)⁽²⁾ 300V	120A	288A	300A
	3PH	RMS continuous ⁽²⁾ 150V	–	–	–
		RMS continuous ⁽²⁾ 300V	20A	32A	75A
		Inrush Current (3 seconds)⁽²⁾ 150V	–	–	–
		Inrush Current (3 seconds)⁽²⁾ 300V	40A	64A	100A
CONTINUOUS FUNCTION (MAX CURRENT)	1PH	RMS continuous ⁽²⁾ 150V	–	–	–
	1PH	RMS continuous ⁽²⁾ 300V	–	–	–
	3PH	RMS continuous ⁽²⁾ 150V	–	–	–
	3PH	RMS continuous ⁽²⁾ 300V	–	–	–
	FREQUENCY	Output frequency range	DC- 10Hz – 1000Hz	DC- 10Hz – 1000Hz	DC- 10Hz – 1000Hz
		Range of synchronization	–	—
		Frequency resolution	0.1Hz	0.1Hz	0.1Hz
		Frequency precision	⁽⁸⁾	⁽⁸⁾	⁽⁸⁾
	SUPPLY	Input supply	400Vac ± 10% 3Ph Without neutral	400Vac ± 10% 3Ph Without neutral	400Vac ± 10% 3Ph Without neutral
		Maximum Input current	60A / 120A	80A / 160A	160A / 220A
		Input Frequency	47Hz-63Hz	47Hz-63Hz	47Hz-63Hz
	OTHER	Size (H : W : D)	1560 : 930 : 755	1560 : 930 : 755	1800 : 1200 : 800
		Weight	740Kg	740Kg	1300Kg
		Protections	OVP; UVP; OTP; INV; OV PE	OVP; UVP; OTP; INV; OV PE	OVP; UVP; OTP; INV; OV PE
		Operation Temperature Range	0-35°C	0-35°C	0-35°C
		RS232	YES	YES	YES
		RS485	YES	YES	YES
		LAN	YES	YES	YES
		Firmware with SCPI	YES	YES	YES
		Firmware with MODBUS	YES⁽⁸⁾	YES⁽⁸⁾	YES⁽⁸⁾
		Remote program	PSM_Interface	PSM_Interface	PSM_Interface
		Driver LabVIEW	PS_Drivers	PS_Drivers	PS_Drivers
		Manual	62000595	62000595	62000595
		Brochure	–	–	–
		Communication protocol manuals	Elettrotest SCPI ModBus	Elettrotest SCPI ModBus	Elettrotest SCPI ModBus
		Declaration of conformity	UE UKCA

	FILTERS	Single phase
		Three phase
		Single/Three phase	●	●	●
		Isolated	●	●	●
		Double range

		OVP = Over voltage protection UVP = Under voltage protection OTP = Over temperature protection INV = Inverter allarm OV PE = Overvoltage PE f.s. = Full scale(2) With Resistive load (7) Available with options (8) For more information, please contact Elettrotest S.p.A.
