Three-phase RPS

Home / Prodotti / Three-phase RPS

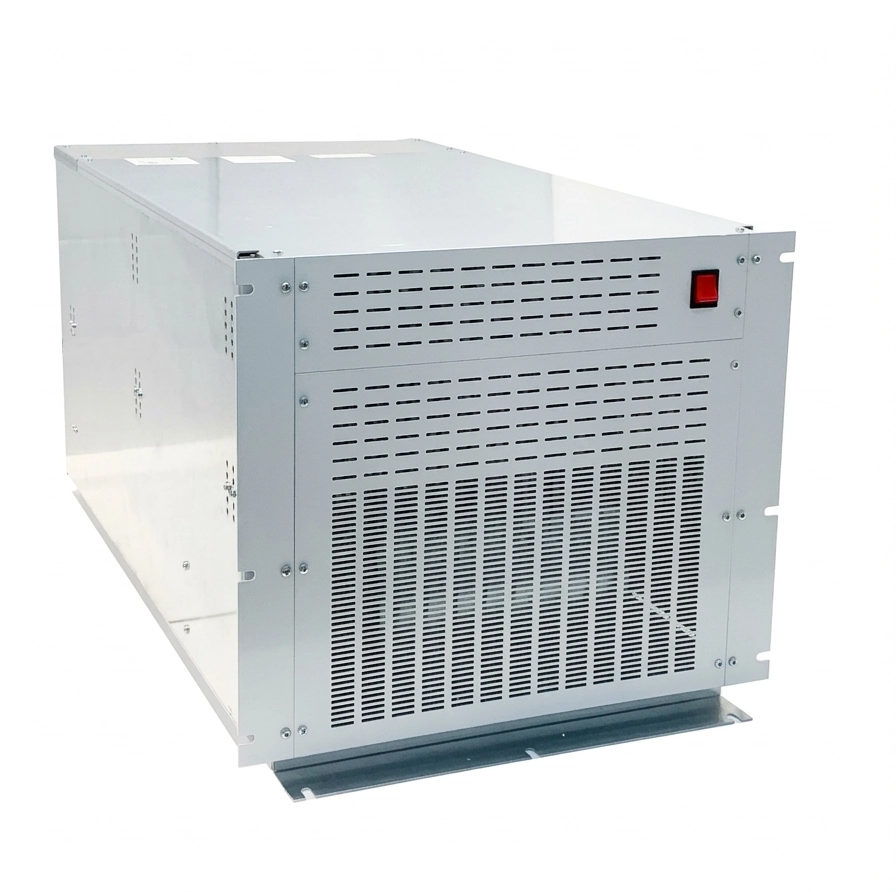

20KVA three-phase generator that can be combined with a rack version for different testing system configurations.

Data sheet

RPS


		Code	99113553	99113753
		Name	RPS 15K/30S (20kVA)	RPS 40kVA
		Power Countinous mode	20 kVA	40kVA
		Power Inrush mode	15kVA / 30kVA	30kVA / 60kVA
		Output	External transformer necessary	External transformer necessary
	VOLTAGE	Range	150V/300V⁽⁴⁾	150V/300V⁽⁴⁾
		Accuracy	<0.5% f.s.	<0.5% f.s.
		Distortion	<0.6%	<0.6%
		Stability of the output voltage	<0.1% f.s.	<0.1% f.s.
		Recovery time of the waveform	<10ms	<10ms
		Maximum Compensated drop	5% s.v.	5% s.v.
		Recovery-time of drop on wires	<200ms	<200ms
		Output voltage resolution	0.025% f.s.	0.025% f.s.
Inrush function (Max current)	1PH	RMS continuous⁽²⁾ 150V	100 A	200 A
		RMS continuous⁽²⁾ 300V	50 A	100 A
		Inrush Current (3 seconds)⁽²⁾ 150V	200 A	400 A
		Inrush Current (3 seconds)⁽²⁾ 300V	100 A	200 A
	3PH	RMS continuous⁽²⁾ 150V	33.3 A	66.6 A
		RMS continuous⁽²⁾ 300V	16.7 A	33.3 A
		Inrush Current (3 seconds)⁽²⁾ 150V	66.6 A	133.2 A
		Inrush Current (3 seconds)⁽²⁾ 300V	33.3 A	66.6 A
Countinous function (Max current)	1PH	RMS continuous⁽²⁾ 150V	133 A	266 A
	1PH	RMS continuous⁽²⁾ 300V	67 A	133 A
	3PH	RMS continuous⁽²⁾ 150V	44.4 A	88.8 A
	3PH	RMS continuous⁽²⁾ 300V	22.2 A	44.4 A
	FREQUENCY	Output frequency range	50Hz(5) – 80Hz	50Hz(5) – 80Hz
		Range of synchronization	45Hz – 65Hz	45Hz – 65Hz
		Frequency resolution	0.02Hz	0.02Hz
		Frequency precision	100ppm	100ppm
	SUPPLY	Input supply	400Vac±10% 3PH	400Vac±10% 3PH
		Maximum Input current	50A	90A
		Input Frequency	47Hz-63Hz	47Hz-63Hz
	OTHER	Size (H : W : D)	8U : 84TE : 500	9U : 449 : 800
		Weight	50Kg	90Kg
		Protections	OVP;UVP;OTP;INV;	OVP;UVP;OTP;INV;
		Operation Temperature Range	0-35°C	0-35°C
		RS232	YES	YES
		RS485	OPTION	OPTION
		LAN	OPTION	OPTION
		Firmware with SCPI	OPTION	OPTION
		Remote program	PS Interface PSM_Interface	PS Interface PSM_Interface
		Driver LabVIEW	PS Driver	PS Driver
		Manual	62000587	62000587
		Brochure	RPS 20K 15K30S
		Communication protocol manuals	Elettrotest	Elettrotest
		Declaration of conformity	UE UKCA	UE UKCA

		Single/Three phase	●	●
		Double range	●	●
		Rack version available	●	●

		OVP = Over voltage protection UVP = Under voltage protection OTP = Over temperature protection f.s. = Full scale (2) With Resistive load (4) Other range on request (5) It is possible on remote interface to set 10Hz but you must decrease the maximum voltage (6) It is possible to use in single phase mode but with 1/3 of nominal power. It is possible asymmetrical output current
